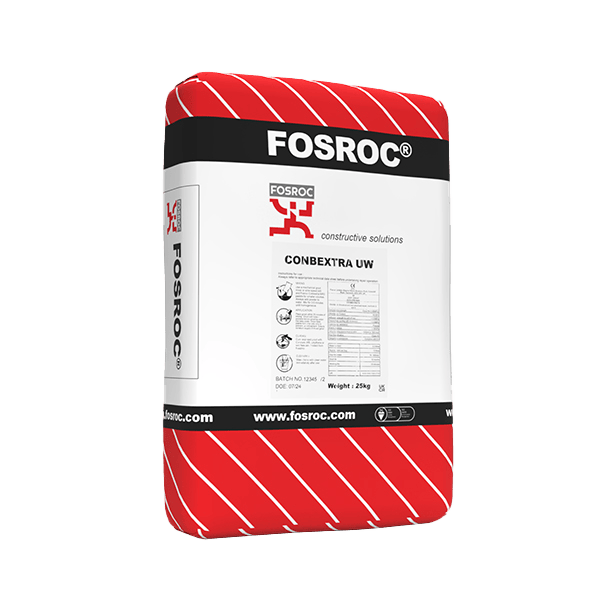

Fosroc Conbextra UW

Fosroc Conbextra UW's aggregate grading minimises segregation and bleeding whilst maintaining flow characteristics, and the gaseous expansion system compensates for shrinkage and settlement in the plastic state. When placed above water it can be used in section thicknesses up to 75mm in a single pour; when placed underwater, the heat-sink effect of the environment allows thicknesses of up to 150mm. For thicker sections, Conbextra UW can be extended with clean rounded well-graded aggregate at a ratio not exceeding 1:1 by weight — allowing sections up to 200mm above water and up to 400mm underwater.

Typical applications include; stanchion baseplates in submerged or tidal conditions, bridge columns and quay pillars and concrete piling and slipways

Benefits

• Wash-out resistant, no significant cement phase loss in stationary or moving water
• Displaces water effectively
• Non-shrink
• Chloride free
• Can be poured or pumped

Good to know

• High early and ultimate strength — 25 MPa at 1 day / 50 MPa at 7 days / 60 MPa at 28 days
• Exceptional freeze-thaw resistance: 2.1 MPa (Class R4 ≥2.0 MPa)
• Bond strength by pull-off: 2.2 MPa
• Elastic modulus: 30.7 GPa at 28 days
• Section thickness above water: 10mm to 75mm (up to 200mm with aggregate extension)
• Section thickness below water: up to 150mm (up to 400mm with aggregate extension)
• Water addition: 5.5 litres per 25kg bag (flowable)
• Yield: approximately 14.5 litres per 25kg bag
