Drainage Channel

A drainage channel, also referred to as a channel drain, linear drain or trench drain, is a linear surface water collection system set flush into a paved or bound surface. Water falling onto the surrounding area drains into the channel through a grated opening, travels along the channel body under gravity, and exits through an outlet into the below-ground drainage system. Plastic channel drainage is the standard solution for managing surface water runoff on driveways, hardstanding areas and garage entrances where pooling water or uncontrolled runoff would otherwise cause damage to the surface, the structure or the surrounding area. Plastic construction offers durability and long service life with no maintenance required against corrosion, making it well suited to residential drainage applications where access for ongoing maintenance is limited.

Heavy Duty Drainage Channels

Drainage channels manufactured for use in the UK are rated by load class under EN 1433, the British and European standard covering drainage channels and gullies in pedestrian and vehicular areas. The load class defines the maximum loading the channel is rated to carry in service and is the primary factor in selecting the correct channel for any application. B125 is the load class required for domestic driveways and areas subject to vehicular traffic, rated to 12.5 tonne. Any hardstanding surface that cars, vans or light commercial vehicles will cross requires a B125 rated heavy duty drainage channel as a minimum specification. A15 rated channels are designed for pedestrian-only areas and will fail under vehicular loading. Specifying the wrong load class is one of the most common errors in residential drainage installations and results in channel failure that requires the drainage run to be lifted and reinstated.

Drainage Channel Grates and Covers

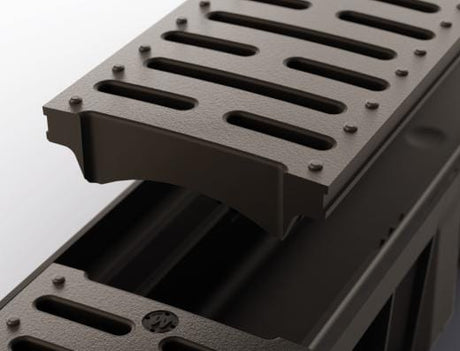

The grate sits in the open top of the channel body, serving two functions: retaining debris to prevent it entering the drainage run, and distributing surface loads across the top of the channel structure. The grate forms part of the load-rated assembly and must be compatible with the channel body it is fitted to.

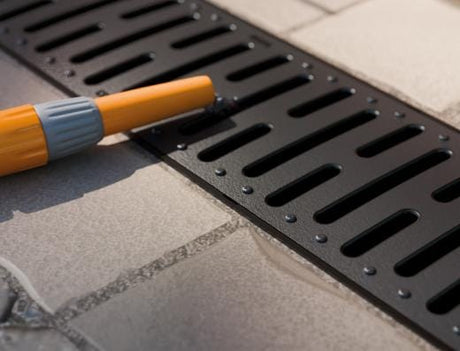

A channel installed without the correct grate cover is not a complete installation. Beyond the functional requirements, a flush-fitted grate cover that sits level with the surrounding surface finish is important on driveways and hardstanding areas where foot traffic and vehicles will pass over the channel regularly.

Installing a Drainage Channel

Drainage channels must be set in concrete to perform correctly under load and over time. A channel installed without adequate concrete bedding and haunching on both sides will shift under vehicular traffic, breaking the joints between channel units and compromising the drainage run. The channel body should be encased in concrete with the top of the channel and grate set flush with the finished surface level.

Correct fall along the length of the drainage run is essential. A minimum gradient of 1:200 is required to move water toward the outlet under gravity rather than allowing it to sit in the channel body. On level sites, the channel can be set to a gradient within the concrete bed even where the finished surface above remains flat.

Common drainage channel problems include insufficient fall resulting in standing water inside the channel, inadequate concrete surround causing joint failure under vehicular loading, outlet connections undersized for the catchment area being served, and A15 rated channels installed in vehicular applications. All of these are avoidable at the specification stage before any installation work begins.

Choosing the Right Drainage Channel

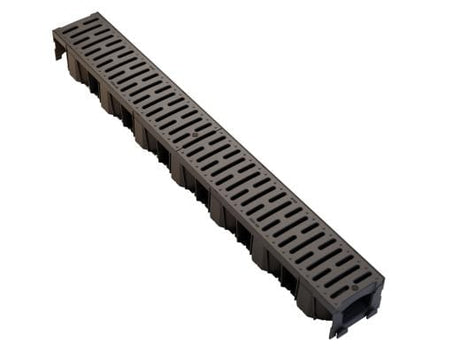

For domestic driveway and hardstanding drainage, a B125 rated plastic drainage channel system is the correct specification. This covers the load requirements of standard residential vehicular traffic and suits new-build and retrofit driveway drainage installations.
When planning an installation, calculate the total length of drainage run required for the area being served and confirm the outlet connection size matches the below-ground drainage system the channel will connect to. For sites with larger catchment areas or more complex layouts, consider whether the run length and number of outlets is sufficient to handle the volume of water the system will need to manage.

Why Choose Construction Supplies UK for Drainage Channels

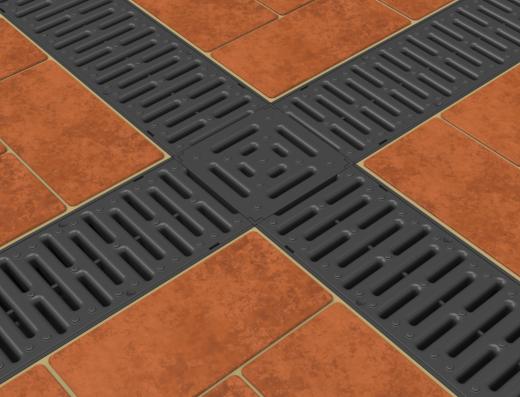

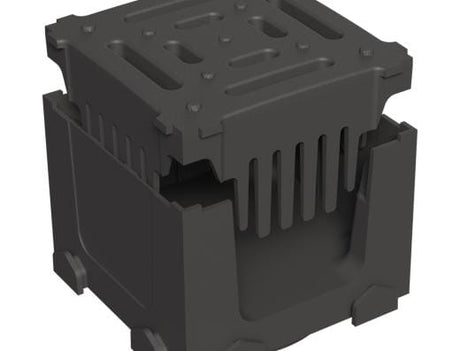

Complete channel drainage systems: From B125 rated plastic drainage channels to junction units, end caps and grate covers, we stock the components needed to build complete drainage runs for driveway and hardstanding installations.

Trusted industry brands: Shop leading manufacturers including Manthorpe.

Competitive trade prices: Drainage channels at competitive trade prices with no minimum order value.

Fast UK-wide delivery: Reliable nationwide delivery with free shipping on orders over £300.

Expert support when you need it: Our team can help you choose the right drainage channel for your project. Contact us at sales@constructionsuppliesuk.co.uk or call 03300 55 32 02.
