RIW Cavity Drain R20

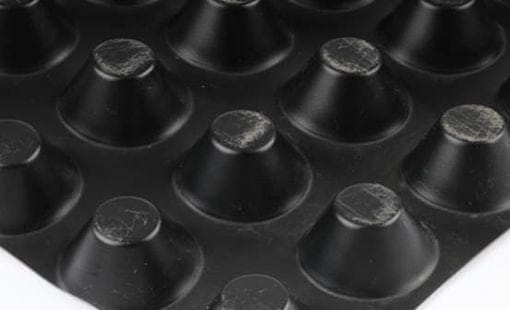

RIW Cavity Drain R20 is a 1mm thick HDPE profiled sheet cavity drainage membrane with 20mm high studs, designed for use as an internal Type C waterproofing system in basements, sub-structures and retaining walls. Rather than resisting water at source, it collects incoming water within the cavity created by its studded profile and channels it to a sump or drainage point for controlled disposal — protecting the usable space behind without relying solely on the structural envelope.

Benefits

• 20mm stud height provides a generous drainage void.
• High compressive strength makes R20 well suited to floor and wall applications where robust performance under load is required.
• It can be applied to wet substrates and is compatible with concrete masonry sheet & concrete piled walls.
• Practical for a wide range of below ground applications
• Complete water and vapour barrier
• When using on walls

Good to know

• When installed correctly cavity drain R20 is capable of meeting the protection requirements for grade 1,2 & 3 basements as classified in BS8102:2009,
• BBA certified
• 1mm thick HDPE with 20mm studs
• High compressive strength

• Chemically resistant
• Fixings required for one roll of R20 applied to walls is 5 brick plugs per m² and 6 rolls of sealing rope
• Fixings required for one roll of R20 applied to floors is 5 rolls of sealing rope
