225mm Starter Tie with 8mm plug

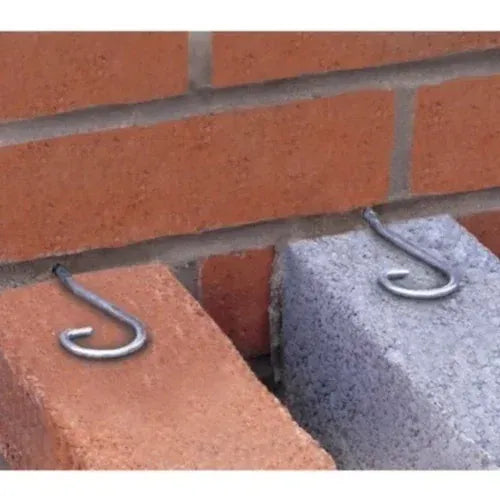

The Starter Tie is a specialist stainless steel connector designed for tying new masonry walls to existing brickwork or blockwork. It serves as a highly effective alternative to traditional tooth-and-bond methods, allowing for a secure structural connection without the need for extensive demolition of the original surface. Each tie is engineered with a flat section that secures to the existing wall using a plug and screw, and a profiled tail that embeds directly into the mortar joints of the new masonry. Manufactured from high-grade stainless steel, these ties provide excellent corrosion resistance and accommodate minor thermal movement, ensuring a stable and long-lasting joint between old and new structures.

Benefits

• Provides a fast and reliable method for connecting new extensions to existing walls
• Manufactured from stainless steel for maximum durability and rust protection
• Eliminates the need for cutting into existing masonry, saving significant labor time
• Profiled tail ensures a high-strength mechanical bond with new mortar joints
• Suitable for both internal and external applications in domestic and commercial builds

Good to know

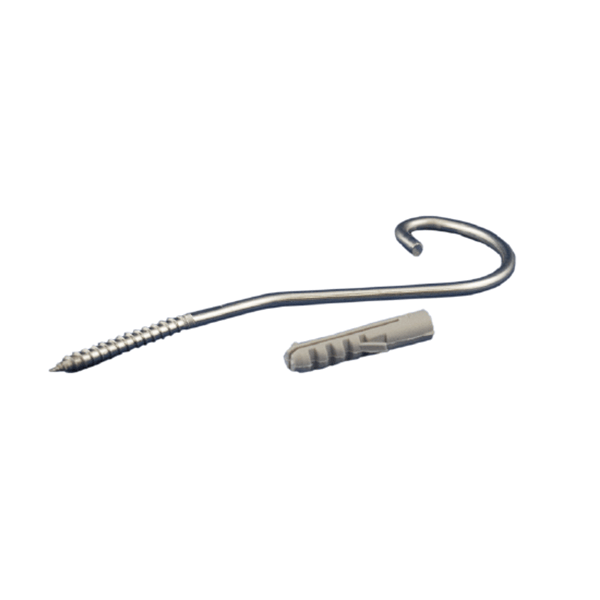

• The kit typically includes the stainless steel tie along with the necessary wall plug and screw
• The ties are generally supplied in boxes of 20 or 100 units depending on project size
• They are designed for use with standard 10mm mortar joints
• Installation involves drilling a 5mm or 6mm hole into the existing wall to receive the plug
• For standard wall heights, ties should be spaced at 225mm vertical centers (every three courses of brick)
• These ties are ideal for remedial work or where a sliding wall starter system is not required
