Diamond Weep

Manthorpe

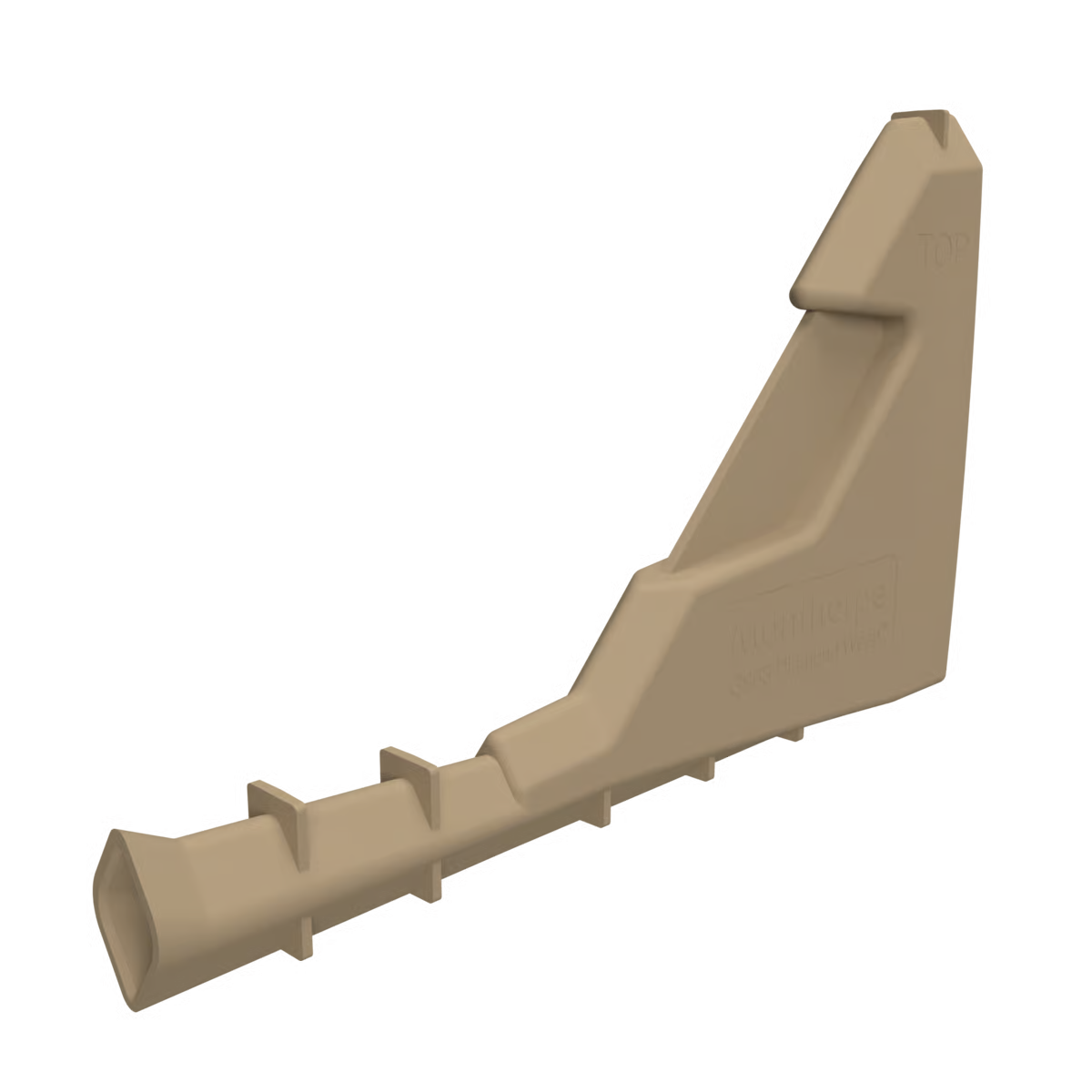

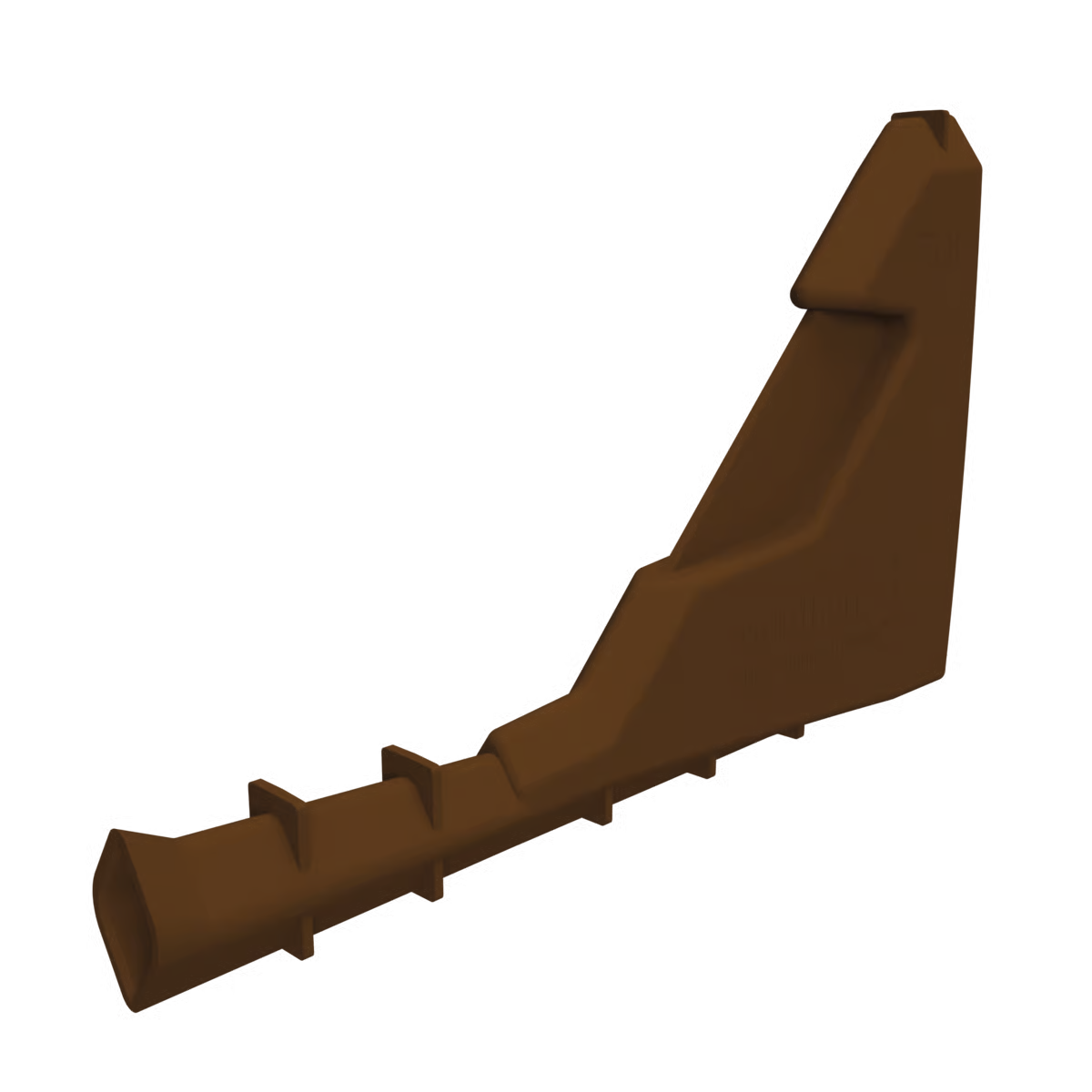

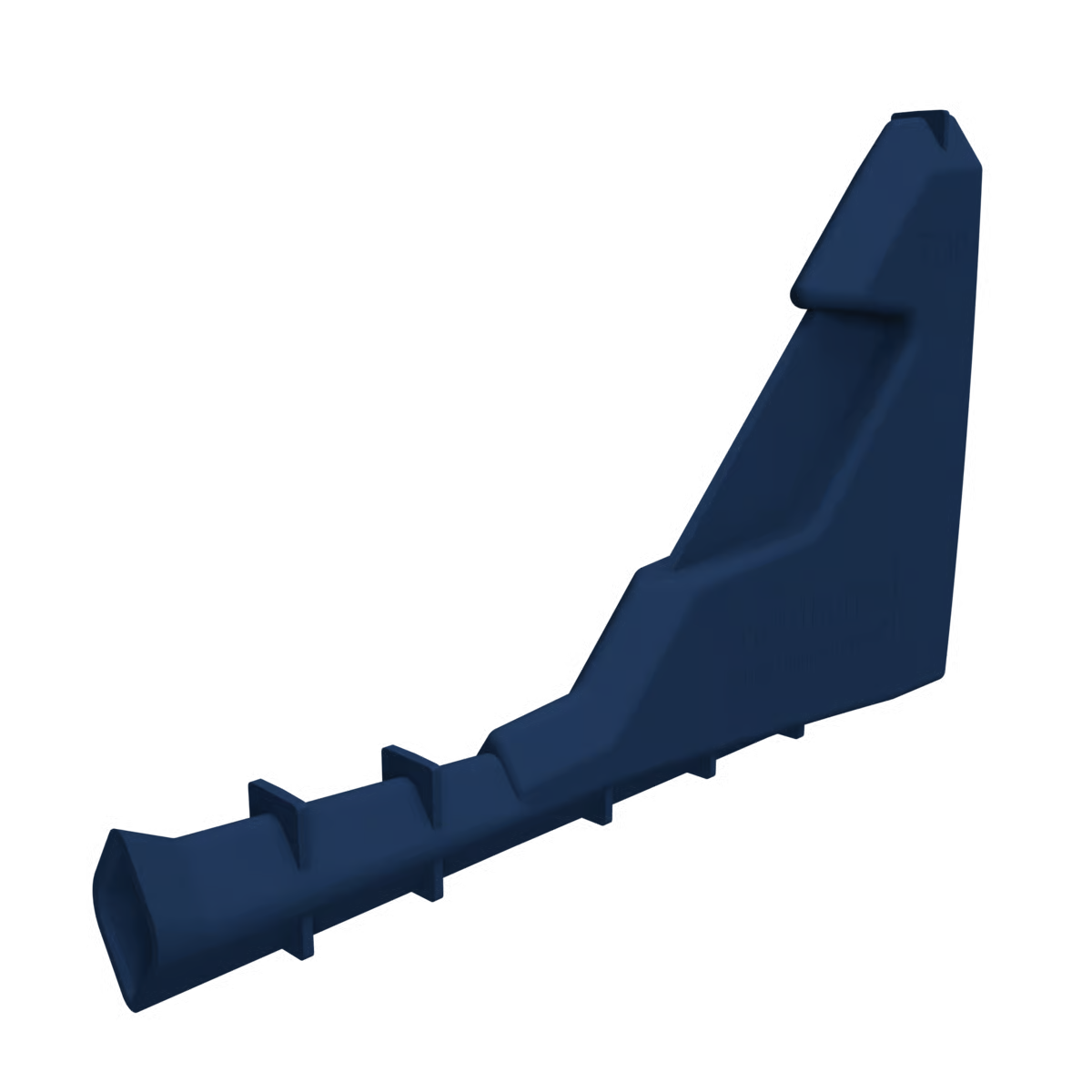

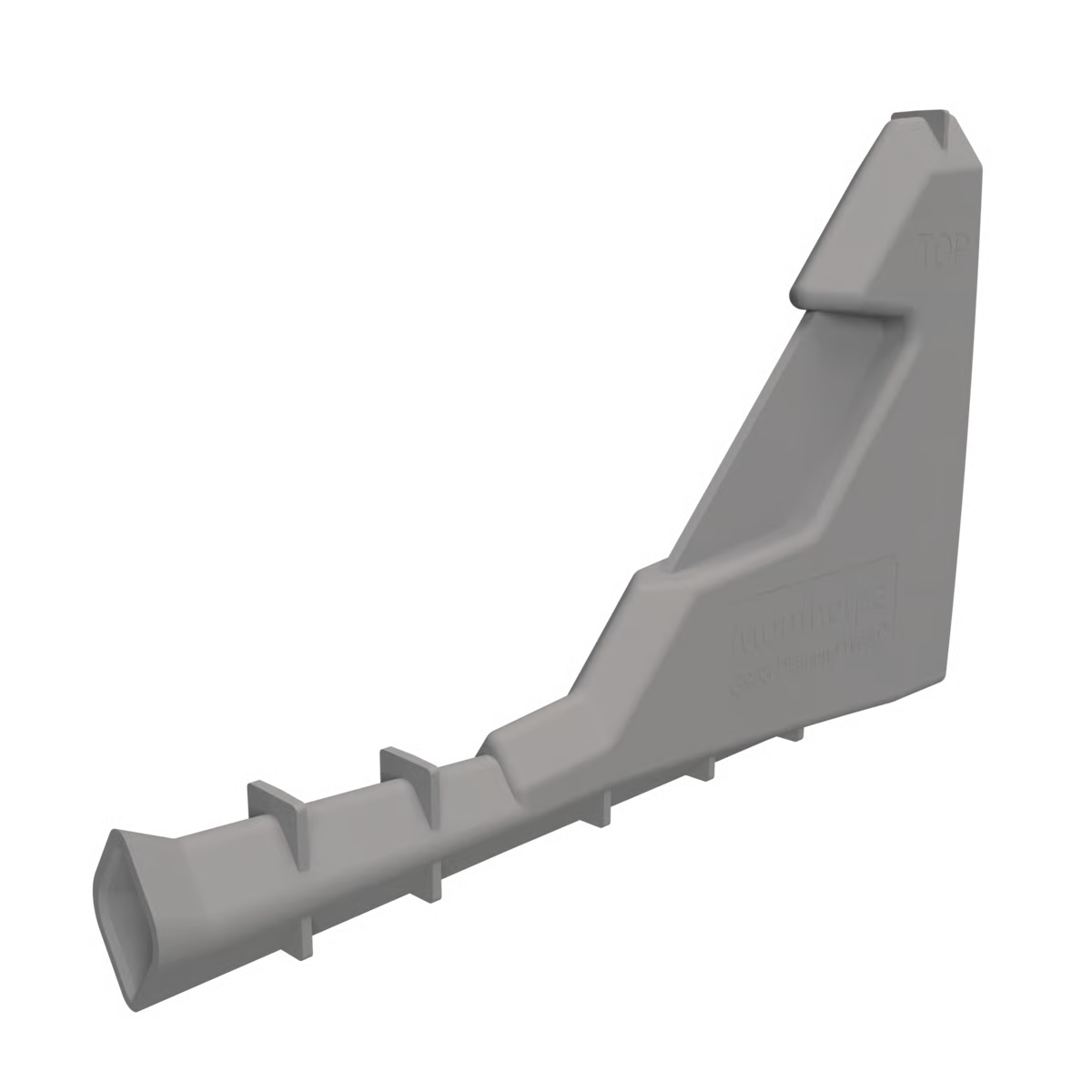

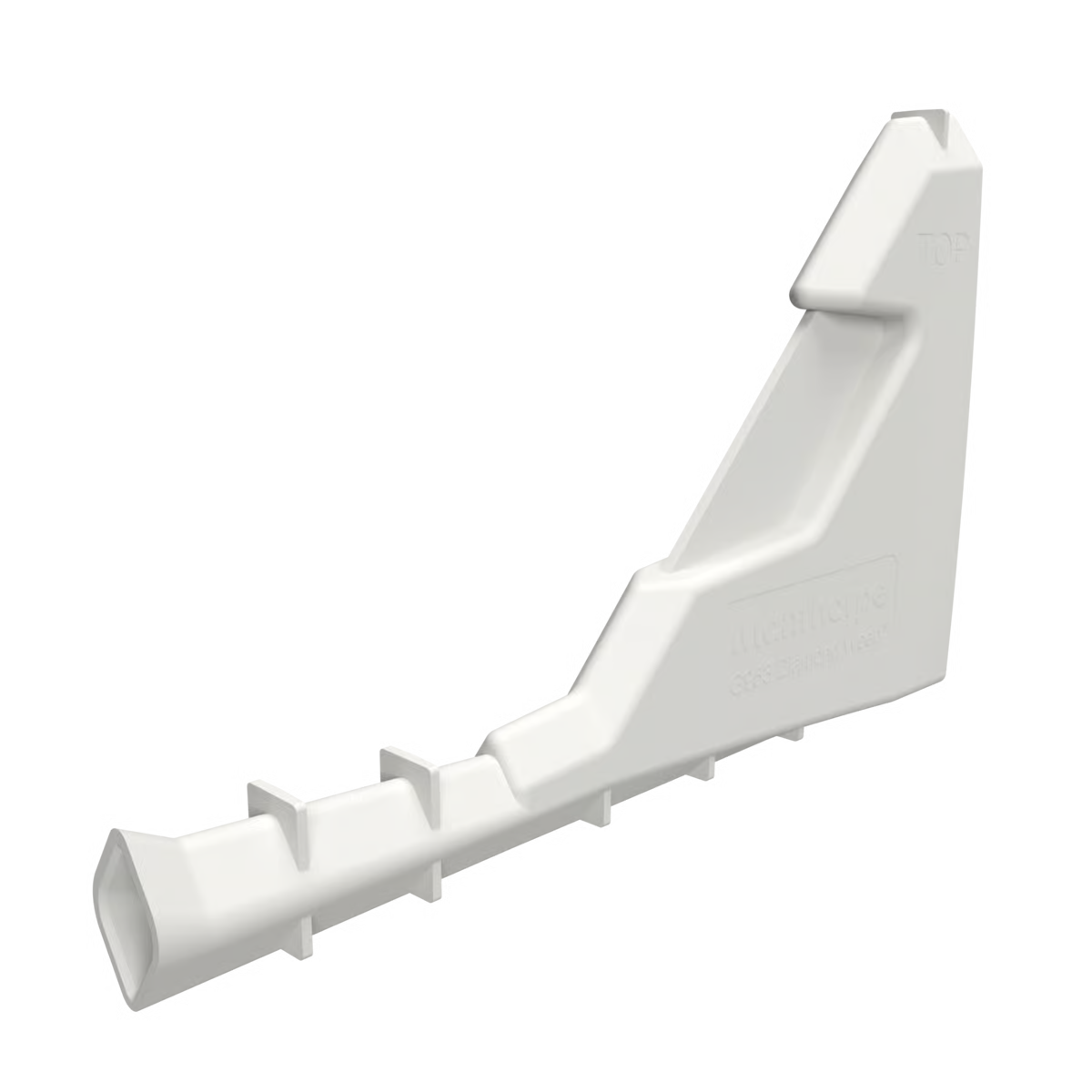

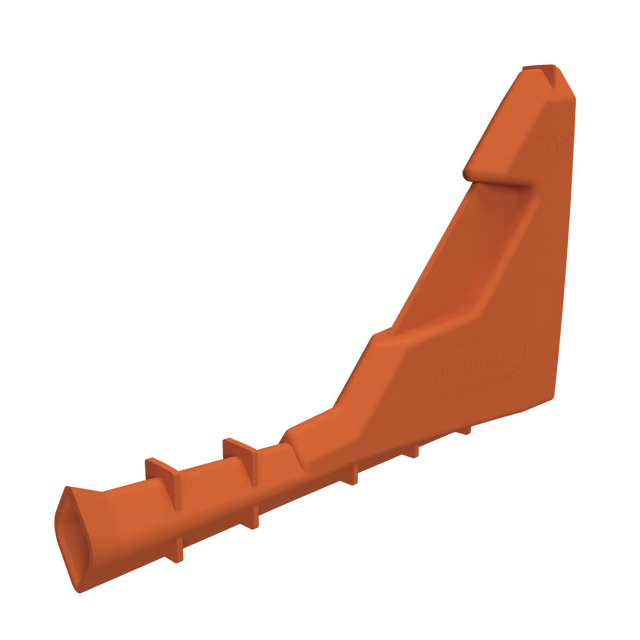

The Manthorpe G953 Diamond Weep is a perp-end vent that drains and ventilates cavity walls, with a clever diamond-shaped profile that speeds up drainage flow and helps the channel self-clean — clearing debris rather than letting it build up. The outlet finishes flush with the brickwork for a discreet, tidy detail, and the narrow 4mm opening drains water freely while keeping large insects out. It fits into a standard perp joint without a second pair of hands and comes in the full range of colours to suit any brick or mortar finish.
Regular price £28.57 Ex VAT
(per box of 100)
£34.28 Inc VAT
Standard delivery by

Free delivery over £300 excluding VAT

Colour:

Description

The Manthorpe G953 Diamond Weep is a robust, discreet perp-end ventilator for cavity wall drainage. Its distinctive diamond-shaped profile increases the drainage flow rate along the base of the channel, promoting self-cleaning and helping clear debris build-up rather than letting it block the outlet,  keeping the cavity draining freely over the life of the wall.

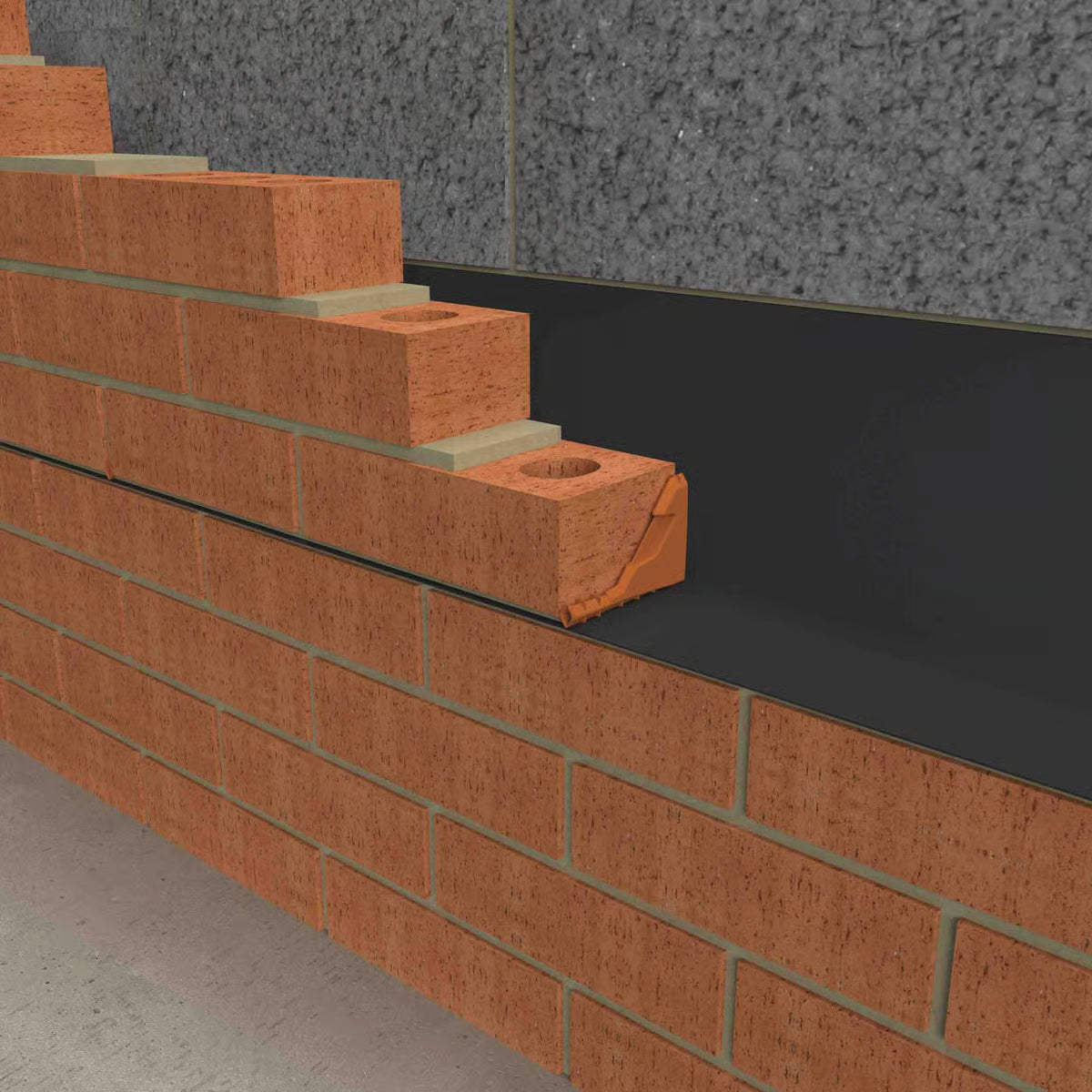

Fitted into an open perpendicular joint above cavity trays, DPCs and over openings, the diamond outlet finishes flush with the brickwork for quick, tidy detailing into the mortar joint, while the tapering outlet is designed for easy cleaning. Ribs along the angled outer walls form a strong mortar key within the perp end for a secure fit in the outer leaf. The rear opening stands a full 65mm,  the height of the perpend joint, in line with NHBC Technical Extra 17, for an optimum drainage inlet from within the cavity, and the minimum 4mm opening is ample for water drainage while staying small enough to keep large insects out.

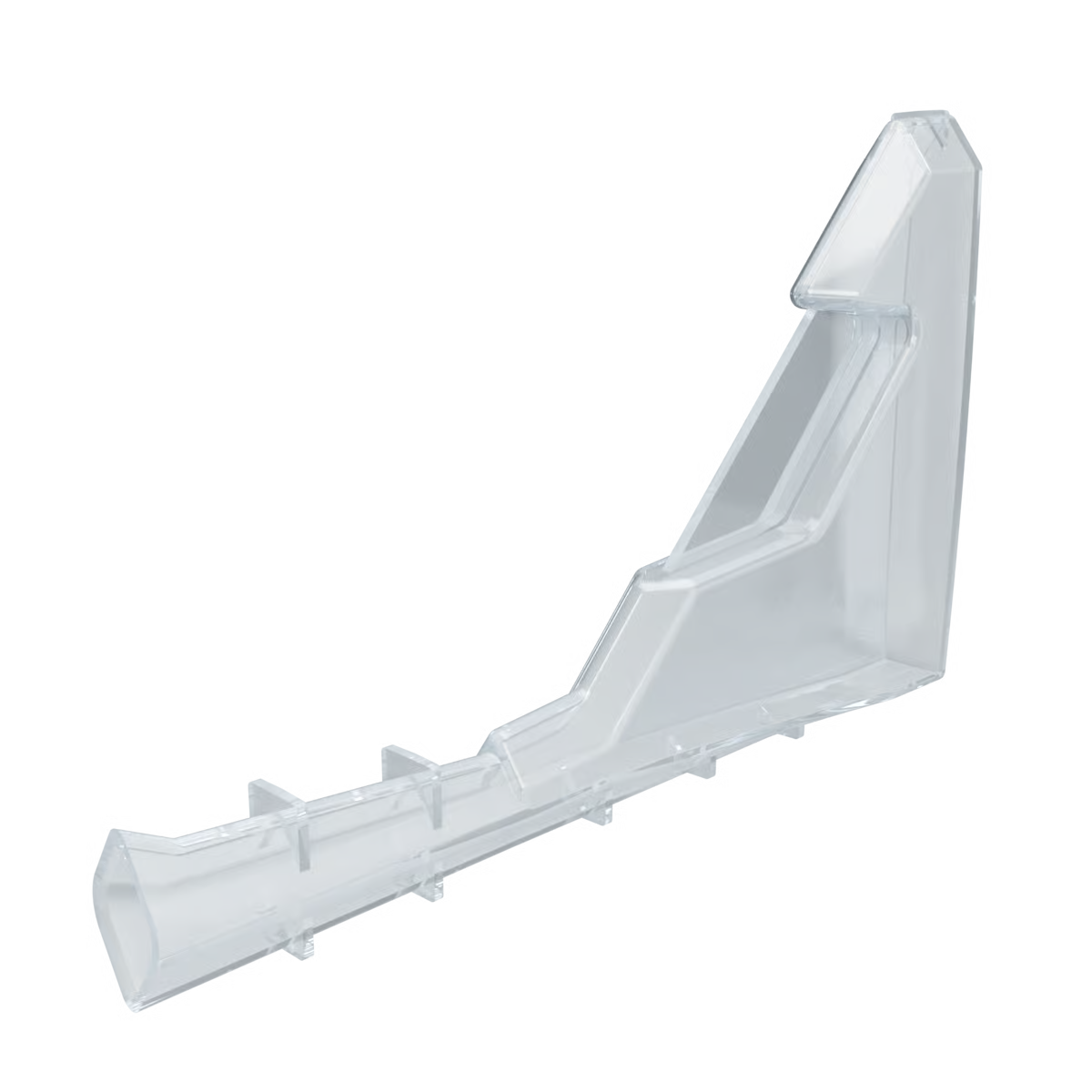

Moulded from durable polypropylene, it's a quick, one-person fit straight into the course as the brickwork goes up, with a BIM object available for specifiers. Available in clear and the full range of colours to match any brick and mortar finish.

Benefits

  • Diamond-shaped profile increases drainage flow rate and promotes self-cleaning, clearing debris build-up
  • Flush outlet for quick, discreet detailing into the mortar joint
  • Full 65mm rear opening for optimum drainage inlet, in line with NHBC Technical Extra 17
  • One-person installation, saving time on site



Good to know

  • In line with Building Regulations Part C 5.5(c), weep holes should be positioned every 900mm above a low-level damp proof course to help transfer moisture through the external leaf.
  • Bed size: 102.5mm
  • Coursing height: 75mm
  • Minimum opening: 4mm

Technical Information

Product Specifications

BrandManthorpe
Length102mm
Width9.5mm
Qty Per Pack100
