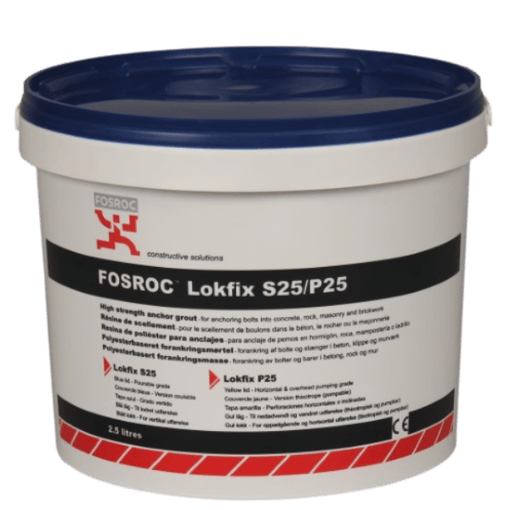

Fosroc Lokfix S25

Fosroc Lokfix S25 differs from the cartridge-based Lokfix E-series products in that it is supplied in pre-measured two-component quantities, a can of resin and a bag of hardener in a plastic mixing pail, ready to mix and pour directly into the hole. The pre-measured packaging ensures a consistent mix ratio without weighing equipment on site. The complete pack must be mixed in a single operation; do not attempt to mix partial pack components.

The mixed grout is poured steadily into the prepared hole, then the anchor bar is pressed in to the required depth. Slight agitation assists in achieving a complete bond. The bar should be left undisturbed until the resin has set. Minimum loading time is 2 hours at +20°C. The cured resin is resistant to fresh and salt water, petrol, oils, grease and most acids, alkalis and solvents.

Typical applications include, application of star and tie bars, balustrades, barrier and safety fence installation and anchoring steel bard into concrete brickwork masonry and rock.

Benefits

• Pourable polyester grout which is pre-measured, so no weighing etc priorto application
• Minimum loading time: 2 hours at +20°C / 5 hours at +10°C / 12 hours at +5°C
• Vibration resistant and corrosion resistant
• No expansive force on substrate
• Can be placed underwater
• BS EN 1504-6 compliant, CE marked, DOP UK9-07
• Highways Agency IAN 104/07 compliant
• Rapid strength gain, 100 MPa compressive strength at 28 days

Good to know

• For vertical downhole applications, hole 8–40mm greater in diameter than bar
• Annular gap: minimum 4mm, maximum 20mm
• Gel time: 25 minutes at +20°C
• Fire classification: B s1 d0, not suitable for structural fire-rated anchoring applications
• Chloride free 0.00%
• Flammable, flash point 29°C, store as Highly Flammable Liquid
