Newton CDM 508 8mm Cavity Drain Membrane
Newton CDM 508 8mm Cavity Drain Membrane - is backordered and will ship as soon as it is back in stock.
Description
Description

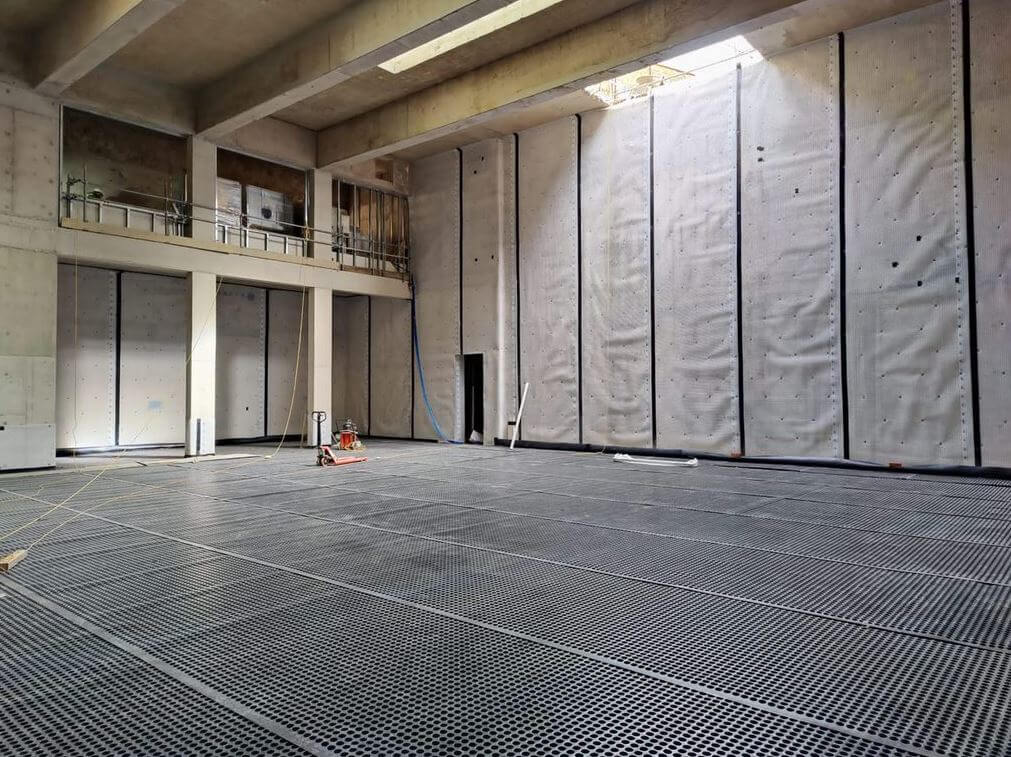

Newton CDM 508 is the cornerstone of the Newton CDM System, a versatile 8mm-stud cavity drain membrane designed for internal waterproofing of below-ground structures. It works by creating an air gap between the structure and the internal wall or floor, allowing water to depressurize and safely drain away to a sump and pump system. Available in both 500g/m² and 700g/m² variants, it provides a flexible solution for walls, floors, and vaulted soffits. BBA-certified and guaranteed for 30 years, it is rot-proof, chemically inert, and capable of creating a dry Grade 3 internal environment even in the most challenging basement conditions.
Benefits
- Rapid installation with minimal surface preparation compared to traditional tanking methods
- BBA certified (22/6357) with a life expectancy equal to the design life of the structure
- Highly resistant to aggressive groundwater, alkalines, saline solutions, and organic acids
- Creates a maintainable "Type C" waterproofing system in compliance with BS 8102:2022
- Non-polluting and safe for use in various residential and commercial environments
Good to know
-
Available in two weights: 500g/m² (Standard) and 700g/m² (Heavy Duty)
-
Multiple roll sizes available: 2.0m x 20m (40m²) and 2.4m x 20m (48m²)
-
The 700g/m² variant is specifically recommended for floor applications due to its higher compressive strength
-
Product Codes: M1-7-48 / M1-7-40 (700g) and M1-5-48 / M1-5-40 (500g)
-
Should be installed using Newton CDM fixing plugs, tapes, and drainage channels for a complete system
Technical Information
Technical Information
Data Sheet
Newton CDM 508 8mm Cavity Drain Membrane - is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | Newton Waterproofing |
|---|---|
| Length | 20m |
| Width | 2m |
| Application | An internal cavity drain membrane for the waterproofing of basement walls, floors, and vaulted ceilings, directing water ingress to a drainage system. |
