Newton CDM 520 eco Cavity Drain Floor Membrane
Newton CDM 520 eco Cavity Drain Floor Membrane - is backordered and will ship as soon as it is back in stock.
Description
Description

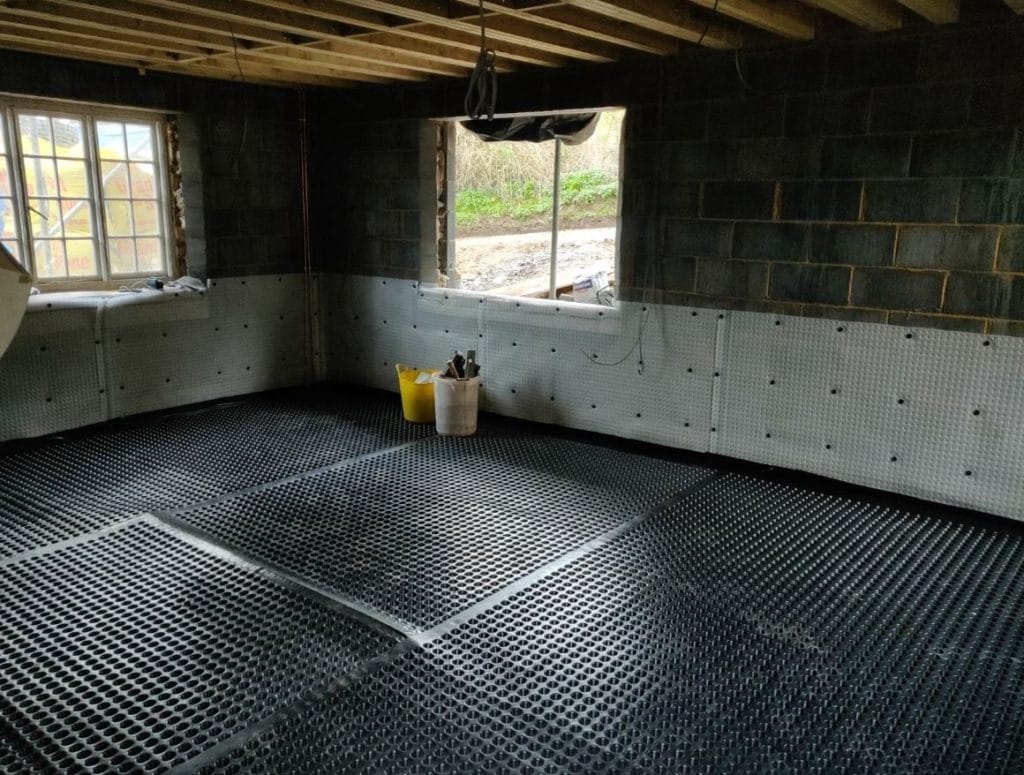

Newton 520 eco is a high-capacity, stud cavity drain membrane designed specifically for basement floors. Manufactured from 100% recycled High-Density Polyethylene (HDPE), it offers a sustainable yet heavy-duty solution for managing water ingress in "Type C" waterproofing systems. Its deep profile provides a significantly larger drainage void than standard 8mm membranes, making it the preferred choice for projects where a high volume of water is anticipated or where a larger safety margin is required. It is BBA-certified, guaranteed for 30 years, and forms a critical part of a maintainable internal drainage system.
Benefits
- Exceptional drainage capacity due to the deep stud profile
- Sustainable construction: made from 100% recycled HDPE and fully recyclable
- High compressive strength, capable of supporting heavy floor loads and screeds
- Inert and highly resistant to water, alkalines, organic acids, and hydrocarbons
- Forms a vapor-proof barrier that protects floor finishes from dampness and ground gases
Good to know
- Heaviest in the range with a density of 1000g/m²
- Often used in conjunction with Newton Fibran XPS 500-C insulation for a warm, dry floor build-up
- Can be used as a gas barrier when joints are correctly sealed with Newton CDM Waterseal Tape
Technical Information
Technical Information
Newton CDM 520 eco Cavity Drain Floor Membrane - is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | Newton Waterproofing |
|---|---|
| Length | 10m |
| Width | 2.07m |
| Application | An internally applied drainage membrane specifically for basement floors, used to manage large volumes of water as part of a Newton CDM System. |
