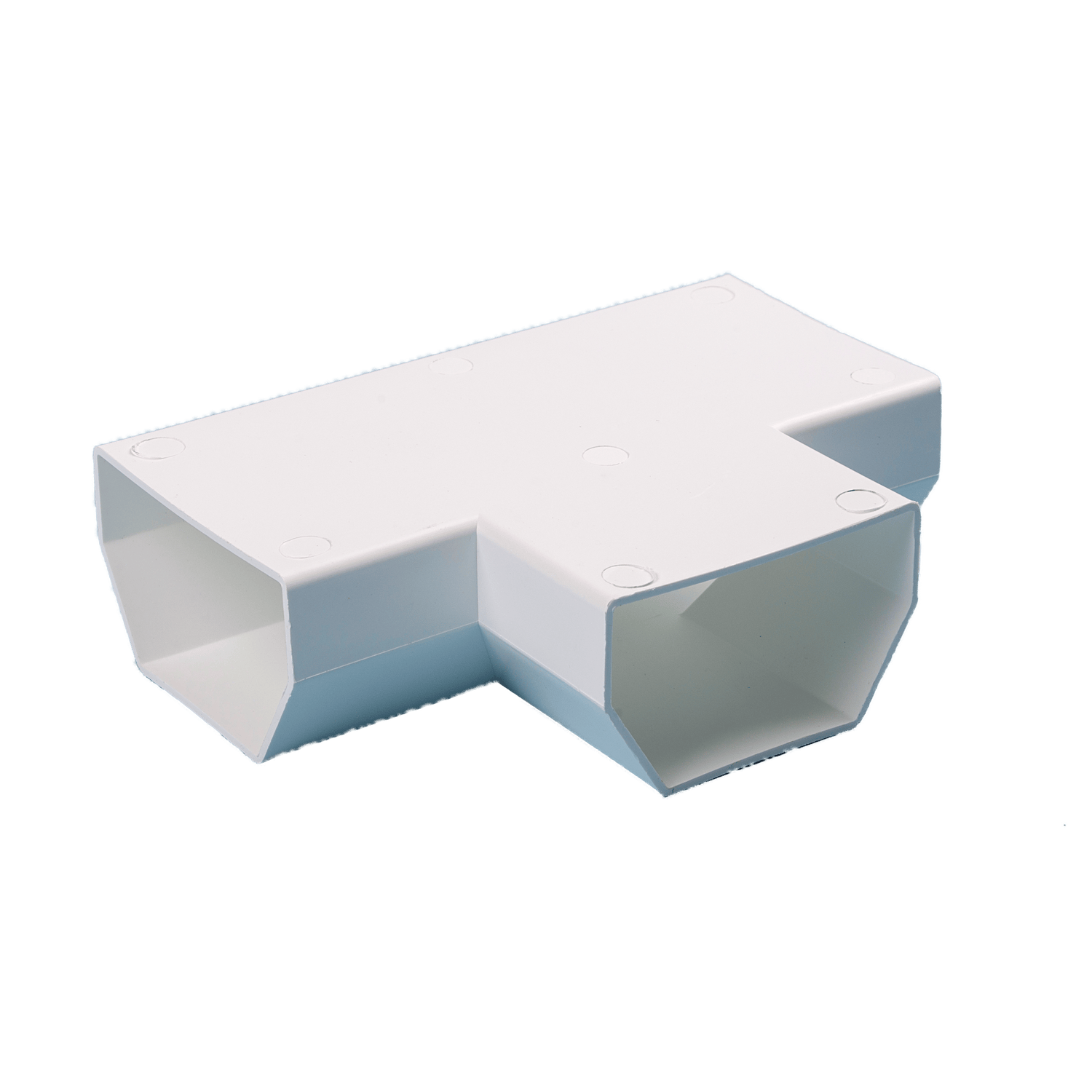

Newton CDM BaseDrain Tee Piece

The Newton CDM BaseDrain T-Piece is a specialist preformed junction designed to facilitate three-way connections within the Newton cavity drain system. This component is essential for complex basement layouts where internal drainage lines (FloorDrain) must be integrated into the main perimeter channel (BaseDrain). By providing a structured 90-degree intersection, the T-Piece ensures that water from multiple directions is consolidated into a single flow path without causing turbulence or backups. Like the rest of the D-range components, it is manufactured from high-grade PVC, featuring the necessary upstands to maintain the integrity of the wall-to-floor waterproofing seal at the junction point.

Benefits:

• Allows for seamless 3-way intersections between perimeter and cross-floor drainage
• Eliminates the need for difficult and unreliable on-site "T-junction" cutting
• Maintains the continuous upstand profile for a secure connection to wall membranes
• Smooth internal transitions prevent the accumulation of silt and debris at the junction
• Robust PVC construction ensures the fitting won't crush or deform under floor loads


Good to Know:

• Requires three Newton BaseDrain Connectors to link the junction to the channel lengths
• Commonly used to "tee-off" a drainage run toward a Newton Sump System
• Can be used to connect a FloorDrain into a BaseDrain run
• Ensure the junction is set perfectly level to allow water to flow freely from all three entry points
