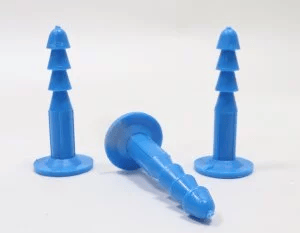

Newton CDM NuSeal Plug Blue 70mm x 11mm

The Newton CDM NuSeal Plug is a specialist fixing plug designed specifically for securing cavity drain membranes to vaulted ceilings and sloping soffits, surfaces where a standard plug with a flat sealing washer simply cannot create an effective seal. Rather than relying on a washer, the NuSeal Plug uses a bead of CDM Rope formed around the plug to create a watertight seal that conforms to the angle of the surface. At 70mm in length, it is slightly longer than the standard CDM MultiPlug, giving additional fixing depth where needed. Like other plugs in the Newton CDM range, it also functions as a fixing point for 6mm screws or Helifix Wall Ties, making it equally suitable as an anchor point for battens or dry-lining systems installed as part of a full cavity drain system.

Benefits

• Purpose-designed for vaulted ceilings and sloping soffits where flat washers cannot seal effectively
• Uses CDM Rope instead of a sealing washer for a flexible, conforming seal on angled surfaces
• At 70mm, provides greater fixing depth than the standard CDM MultiPlug
• Also acts as a fixing point for 6mm screws or Helifix Wall Ties for battens and dry-lining systems
• Supplied in a convenient bag of 100 for full installation projects


Good to know

• Supplied in bags of 100 units, product code A2
• Available in blue; size is 70mm x 11mm
• CDM Rope must be ordered separately to use as the sealing element with this plug
• Not supplied with a sealing washer, CDM Rope is the intended seal for this plug type
• Compatible with the wider Newton CDM System range of cavity drain membranes and accessories
