Novia Reflex Breather Membrane DIY KIT
Novia Reflex Breather Membrane DIY KIT is backordered and will ship as soon as it is back in stock.
Description
Description
The Novia Reflex Reflective Breather Membrane DIY Kit contains everything needed to install a compliant reflective roof or wall breather membrane with the added benefit of improved thermal performance. At the heart of the kit is Novia's Reflex, a three-layer metallised polypropylene microporous breather membrane with 81% reflectivity (aged), capable of delivering an additional R value of up to 0.45m²K/W in wall applications or 0.17m²K/W in roof applications, UKCA marked to EN 13859-1 and EN 13859-2 and compliant with BS 5534 for all wind zones 1 to 5 with batten spacings up to 250mm. The kit includes one roll of 50mm Double Sided Lap Tape and two rolls of 75mm Breather Membrane Lap Tape, selected to work together to achieve a secure, weathertight lap at all joints and overlaps in line with BS 5534 wind uplift requirements.
Benefits
- Complete DIY kit, everything needed for a compliant reflective breather membrane installation included
- Reflex UKCA marked to EN 13859-1 and EN 13859-2 for assured performance
- 81% reflectivity (aged) delivers an additional R value of up to 0.45m²K/W in wall applications or 0.17m²K/W in roof applications
- Three-layer metallised polypropylene microporous construction for reliable waterproofing and vapour permeability
- BS 5534 compliant for wind zones 1 to 5 with batten spacings up to 250mm
- Waterproof to Class W1 for roof and wall applications
- 50mm Double Sided Lap Tape and 75mm Breather Membrane Lap Tape work together to achieve BS 5534 wind uplift compliance at all laps
- Removes the guesswork, compatible products specified and pre-selected
Good to know

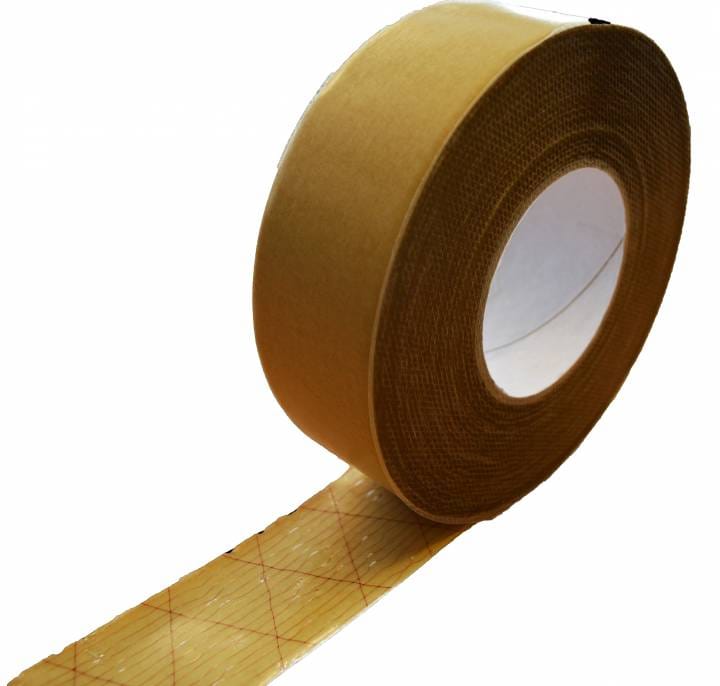

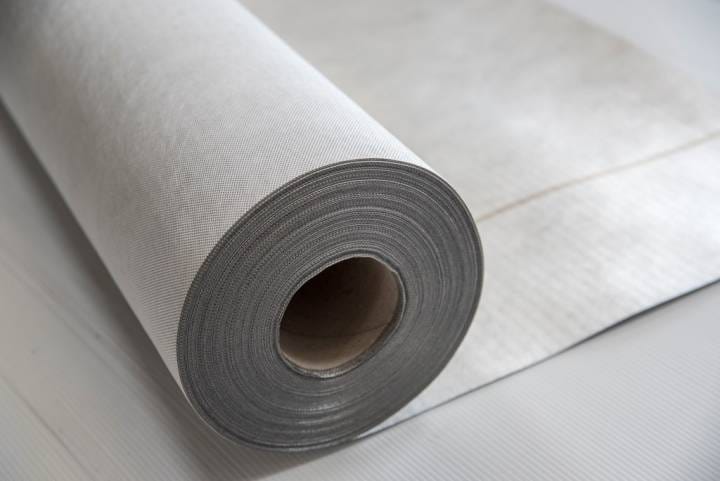

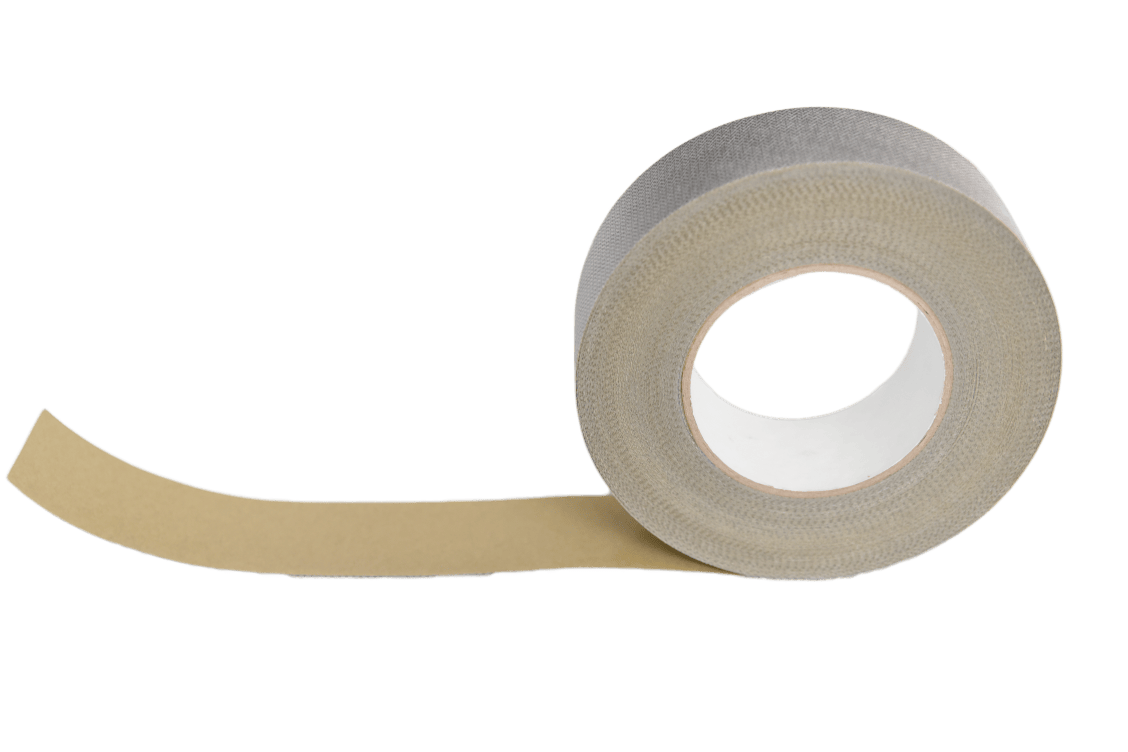

- Kit contents: 1 x Reflex Breather Membrane (1.5m x 50m / 75m²), 1 x Double Sided Lap Tape (50mm x 25m), 2 x Breather Membrane Lap Tape (75mm x 25m)
- Additional R value benefit is only achieved when a still air gap is maintained on the reflective face
- Reflective one side, white reverse with 150mm overlap line
- Always use DSLT in conjunction with BMLT for BS 5534 wind uplift compliance
- Always follow current building regulations and good practice guidance for breather membrane installation
Technical Information
Technical Information
Novia Reflex Breather Membrane DIY KIT is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | Novia |
|---|---|
| Application | A Reflex Reflective Breather Membrane DIY Kit containing everything needed to install a compliant reflective roof or wall breather membrane with the added benefit of improved thermal performance |
