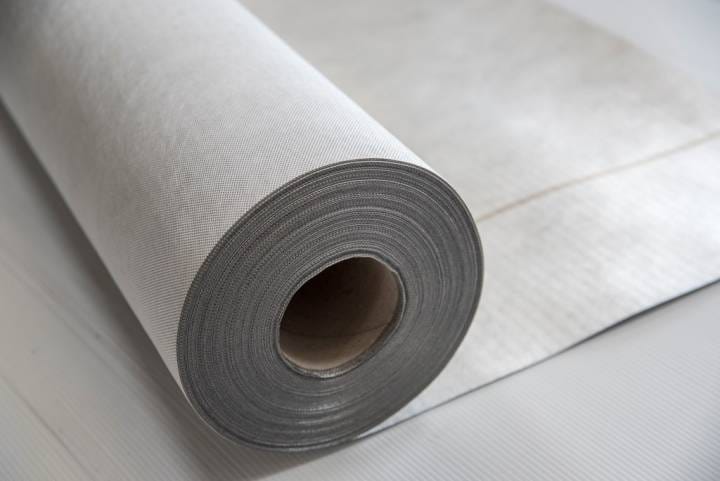

Novia Reflex Roof and Wall Breather
Novia Reflex Roof and Wall Breather is backordered and will ship as soon as it is back in stock.
Description
Description
Novia Reflex is a high quality, strong and versatile low cost reflective breather membrane for all pitched cold and warm roofs and insulated wall applications, a single product solution for both applications. With 81% reflectivity (aged), it achieves an additional R value of up to 0.45m²K/W in an unventilated wall cavity or up to 0.17m²K/W in an insulated sloping roof. Class W1 water resistance with high breathability. Excellent tensile and nail tear strength for improved on-site durability. Suitable for BS 5534 wind uplift zones 1 to 5. UKCA compliant to EN 13859-1 and EN 13859-2. Reflective on one side and white on the reverse with a 150mm overlap line. Available on NBS Chorus and NBS Source. Supplied as a 1.5m x 50m roll (75m²).
Benefits
- 81% reflectivity (aged), improves U values and achieves additional R value of up to 0.45m²K/W in an unventilated wall cavity or up to 0.17m²K/W in an insulated sloping roof
- Helps construction remain cooler in summer and warmer in winter
- Single product solution for both roof and wall applications
- Excellent Class W1 water resistance, meets EN 1928 W1 Class
- High breathability
- Excellent tensile and nail tear strength for improved on-site durability
- Suitable for BS 5534 wind uplift zones 1 to 5 without additional tapes with batten spacings up to 250mm
- UKCA compliant to EN 13859-1 and EN 13859-2
Good to know
- Suitable for all pitched cold and warm roofs and insulated wall applications
- Reflective on one side and white on the reverse with a 150mm overlap line
- R values depend on correct installation, refer to datasheet for full BR443 compliance information
- Can be used in zones 1 to 2 without additional tapes with batten spacings up to 345mm, and zones 1 to 5 using Novia Breather Membrane Lap Tape
- Install using Novia Double Sided Lap Tape between laps and Novia Breather Membrane Lap Tape to complete the seal, use of both tapes recommended for best airtightness
- Also available attached to insulation via RoofReflex
- Available on NBS Chorus and NBS Source
- Supplied as a 1.5m x 50m roll (75m²)
Technical Information
Technical Information
Data Sheet
Novia Reflex Roof and Wall Breather is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | Novia |
|---|---|
| Length | 50m |
| Width | 1.5m |
| Application | A high quality, strong and versatile low cost reflective breather membrane for all pitched cold and warm roofs and insulated wall applications |
