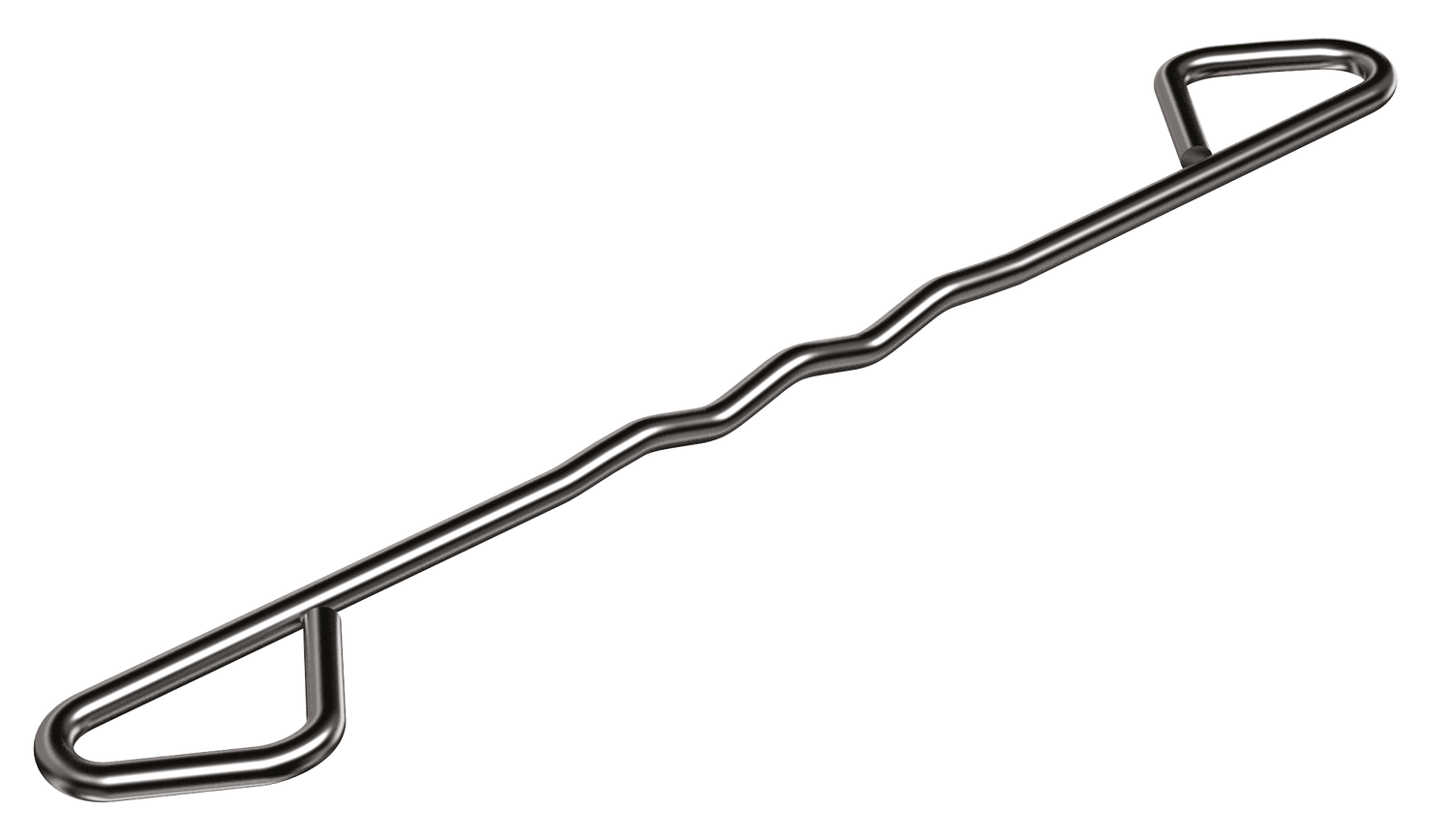

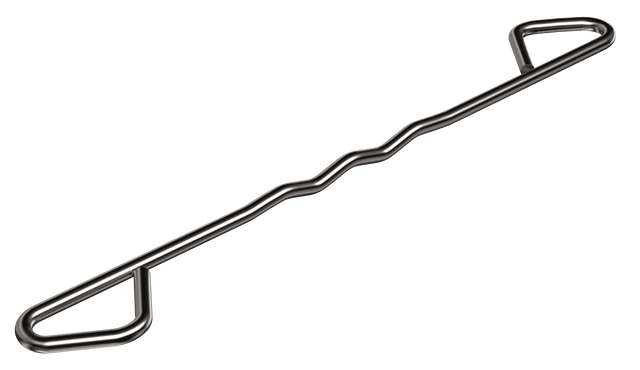

TT1 Turbo Heavy Duty Tie

The TecTies TT1 is a heavy duty cavity wall tie with a unique tangle free, fully closed end design. Suitable for cavity widths up to 150mm and buildings of any height. The closed end design saves time on site by eliminating tangled ties, reduces waste, removes the risk of injury from sharp protruding ends, and can be stored outdoors without deterioration. The multi drip form makes it impossible to install upside down. Manufactured from 304 Grade 18/8 Austenitic Stainless Steel. Meets the requirements of BS EN 845-1:2013 and Part E of the Building Regulations for a Type B tie in external walls. Fully tested to BS EN 846-5:2012 at Lucideon (notified body 1289). UKCA/CE+UKNI marked. Retaining discs are required for partial fill cavity wall installation.

Benefits

• Unique tangle free, fully closed end design saves time on site
• Impossible to install upside down due to multi drip form
• Eliminates risk of injury from sharp tie ends protruding from masonry work
• Suitable for cavity widths up to 150mm and buildings of any height
• Can be stored outdoors without deterioration
• Supplied bundled without boxes to minimise packaging and environmental impact
• Manufactured from 304 Grade 18/8 Austenitic Stainless Steel


Good to know

• Retaining discs required for partial fill cavity wall installation
• Meets BS EN 845-1:2013 and Part E of the Building Regulations for a Type B tie in external walls
• Fully tested to BS EN 846-5:2012 at Lucideon (notified body 1289)
• Underwritten by TZUS Prague (notified body 1020)
• UKCA/CE+UKNI marked
• ISO 9001:2015 and ISO 14001:2015 certified manufacturer
• TT1 is a Registered Design (GB Reg. Design No. 3023874)
