TTCH Brick Channel
TTCH Brick Channel is backordered and will ship as soon as it is back in stock.
Description
Description

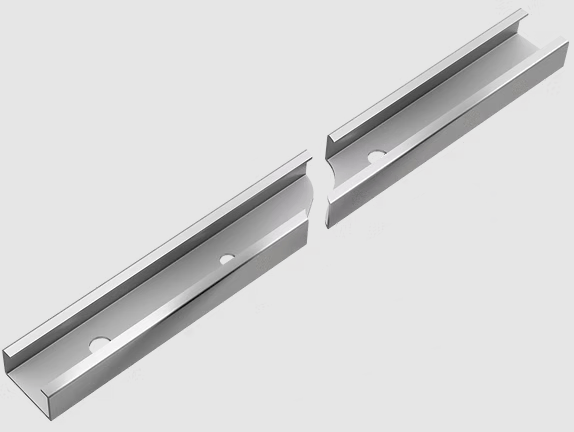

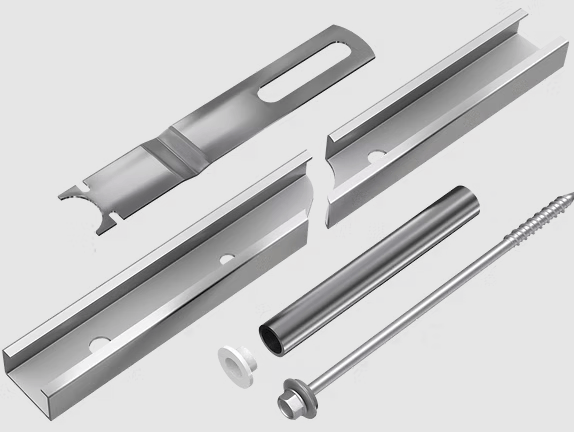

The TecTies 25/14 Channel System is designed to tie brickwork to steel columns or concrete structures. The channel features alternate 5.3mm and 9.5mm diameter holes to accept different fixings, the smaller holes for fixing to steel or timber using High Thread Stainless Steel Tek Screws, and the larger holes for concrete fixings. Pre-punched holes at close centres ensure a fixing position is always located near the end, even when cut on site. The 16mm channel opening easily accommodates a drive socket and washer for tek fixing screws. Available in standard lengths of 2700mm. High Thread Stainless Steel Tek Screws are available to accommodate a combined backing board and insulation thickness of up to 220mm and a steel thickness from 1.2mm to 3mm, with a shaped drill tip that allows installation without pre-drilling. UKCA/CE+UKNI marked.
Benefits
- Designed to tie brickwork to steel columns or concrete structures
- Pre-punched holes at close centres ensure a fixing position is always available, even when cut on site
- Alternate hole sizes accommodate different fixing types in one channel
- 16mm channel opening easily accommodates a drive socket and washer
- High Thread Stainless Steel Tek Screws require no pre-drilling
- Tek screws accommodate combined backing board and insulation thickness of up to 220mm
Good to know
- Smaller 5.3mm holes for fixing to steel or timber with High Thread Stainless Steel Tek Screws
- Larger 9.5mm holes for concrete fixings
- Steel thickness from 1.2mm to 3mm compatible with tek screws
- Channel available in standard lengths of 2700mm
- Independently tested with Hadley Group and Superior Sections Ltd
- UKCA/CE+UKNI marked
- ISO 9001:2015 and ISO 14001:2015 certified manufacturer
Technical Information
Technical Information
Data Sheet
TTCH Brick Channel is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | Tecties |
|---|---|
| Application | Designed to tie brickwork to steel columns or concrete structures |
| Qty Per Pack | 100 |
