TTCH Channel Wall Ties
TTCH Channel Wall Ties - is backordered and will ship as soon as it is back in stock.
Description
Description

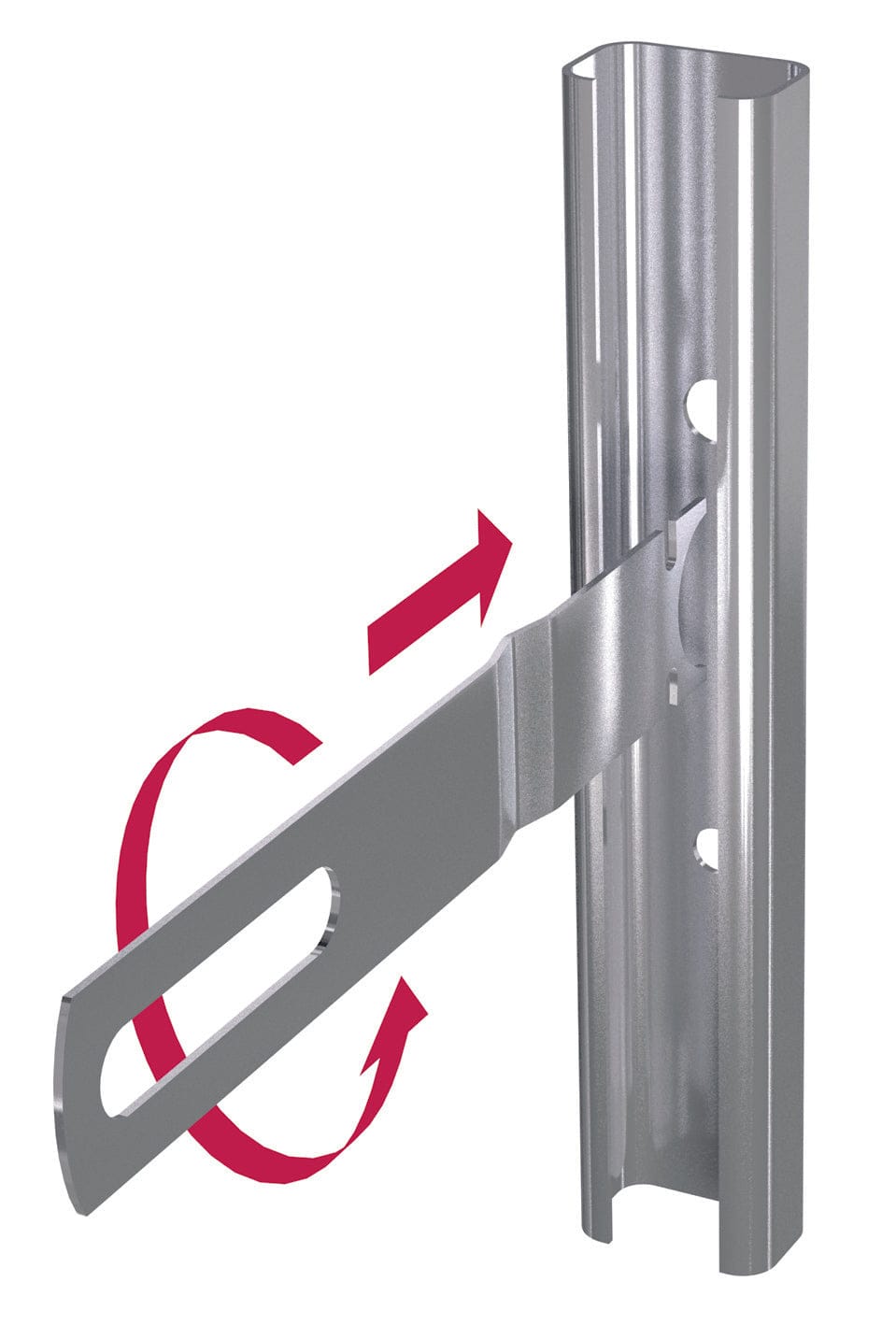

The TecTies TTCH wall ties are designed for use with the TecTies 25/14 Channel System to tie brickwork to steel columns. Available in various lengths to suit open cavities from 35mm to 284mm, each tie features a V drip and is located in the channel by rotating through 90° before being built into the masonry bed joint. A minimum embedment of 55mm into masonry is recommended. Compression sleeves are available for use with semi-rigid and flexible insulation to maintain the compressive strength and stability of the system. UKCA/CE+UKNI marked.
Benefits
- Suitable for open cavities from 35mm to 284mm
- V drip on each tie to prevent moisture transfer
- Easy to position, located in channel by rotating through 90° and moved to required position
- Compatible with rigid, semi-rigid and flexible insulation
- Independently tested with Hadley Group and Superior Sections Ltd
Good to know
- Minimum embedment of 55mm into masonry recommended
- Compression sleeves required for use with semi-rigid and flexible insulation
- Available in nine lengths from TTCH100 to TTCH325 to suit cavity size
- Channel fixed using High Thread Stainless Steel Tek Screws, no pre-drilling required
- UKCA/CE+UKNI marked
- ISO 9001:2015 and ISO 14001:2015 certified manufacturer
Technical Information
Technical Information
Data Sheet
TTCH Channel Wall Ties - is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | Tecties |
|---|---|
| Length | 100mm |
| Application | Designed for use with the TecTies 25/14 Channel System to tie brickwork to steel columns |
| Qty Per Pack | 250 |
