TTSFCV Frame Cramps 3 Hole V-Drip
TTSFCV Frame Cramps 3 Hole V-Drip - is backordered and will ship as soon as it is back in stock.
Description
Description

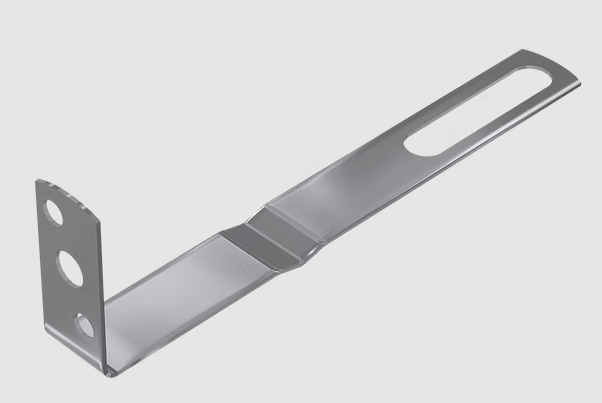

The TecTies TTSFCV is a stainless steel frame cramp with an integrated V-drip, designed to provide lateral restraint for non-structural elements such as door and window frames to masonry. The V-drip detail is specifically engineered to prevent moisture from traveling across the cavity, protecting the internal leaf of the building. It features a standard 50mm upstand and a safety end for secure mortar embedment, with one 10mm and two 6mm diameter holes to accommodate various fixing methods including screws, bolts, or shotfiring. Manufactured from 304 Grade 18/8 Austenitic Stainless Steel for maximum corrosion resistance, it is fully tested to comply with BS EN 845-1:2013 and carries UKCA/CE marking.
Benefits
- Designed to restrain non structural elements such as door and window frames to masonry while preventing moisture travel with an integrated V-drip
- Multiple fixing options including screw fixing, bolting or shotfiring
- Safety end detail for secure embedment
- Manufactured from 304 Grade 18/8 Austenitic Stainless Steel for corrosion resistance
Good to know
- Features one 10mm and two 6mm diameter holes
- Standard 50mm upstand
- For non structural applications only
- Independently tested at Lucideon (notified body 1289) to BS EN 845-1:2013
- UKCA/CE marked
- ISO 9001:2015 and ISO 14001:2015 certified manufacturer
Technical Information
Technical Information
Data Sheet
TTSFCV Frame Cramps 3 Hole V-Drip - is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | Tecties |
|---|---|
| Size | 125mm |
| Application | A stainless steel frame cramp with an integrated V-drip, designed to provide lateral restraint for non-structural elements such as door and window frames to masonry |
| Qty Per Pack | 250 |
